What are TROMMELFLEX CABLES?

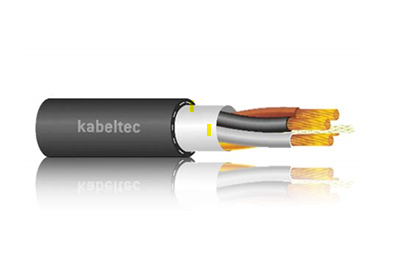

The Trommelflex PUR-HF is a halogen-free, heavy-duty reeling cable designed for applications involving high mechanical stress, such as cable reels (including vertical operation), hoisting devices, conveyor systems, mobile motors, rail motors, and agricultural equipment. Its robust construction and material properties make it suitable for both indoor and outdoor use, even in challenging environments.

Technical Specifications

Construction:
- Conductor: Fine stranded plain copper (Class 5, IEC 60228)
- Insulation: Polyester-based halogen-free compound
- Core Identification: Up to 5 cores: colored per VDE 0293; 6 or more cores: white with black numbering and green/yellow earth
- Inner Sheath: Special halogen-free polyurethane
- Support Braid: Textile braid between inner and outer sheaths
- Outer Sheath: Halogen-free, flame-resistant polyurethane
- Sheath Color: Typically black
Electrical Properties:
- Rated Voltage: 600/1000 V
- Test Voltage: 4000 V (AC)
- Conductor Resistance: According to IEC 60228 Class 5
Mechanical & Thermal Properties:
- Operating Temperature:
  - Fixed Installation: -50°C to +90°C
  - Mobile Operation: -40°C to +90°C
- Maximum Conductor Temperature: +90°C
- Minimum Bending Radius: 6 × outer diameter
- Tensile Strength: Up to 25 N/mm² of copper cross-section
- Operating Speed:
  - Horizontal Reeling: Up to 180 m/min
  - Vertical Reeling: Up to 120 m/min
- Water Resistance: Suitable for permanent use in water (non-drinking) up to 50 m depth.
Standards & Approvals:
- Complies with DIN VDE 0250
- Flame resistance according to IEC 60332-1
- Oil resistance per VDE 0472 Part 803 Test Type B.

Availability in the UAE

Unigroup FZE offers high-quality Trommelflex cables with low minimum order quantities and competitive lead times. Our Solution Engineers provide expert guidance in selecting the optimal Trommelflex cable for specific applications, having successfully supported numerous custom projects in the UAE and GCC. Unigroup understands the complexities of cable design and ensures that, regardless of the environment or function, a Trommelflex cable can be tailored to enable the equipment to operate reliably and efficiently.

If you require further assistance with selecting the appropriate cable size feel free to ask!
