Acoustic Fabric Solutions

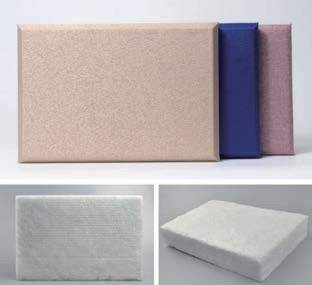

SilentFelt FABRIC ACOUSTIC PANEL
HYDROPHOBIC&FORMALDEHYDE FREE FABRIC ACOUSTIC PANEL
Specifications
| Name | Silentfelt Hydrophobic & Formaldehyde free Fabric Acoustic Panel |
| Base Material | Hydrophobic & formaldehyde free white glass wool |
| Frame | Resin frame, aluminum frame, soft frame |
| Finish | Fabric series, leather series, fiber glass fabric series |
| Hydrophobic rate | ≥98% |
| Moisture content | 0.4% |
| Fire protection | Class A(base material) |

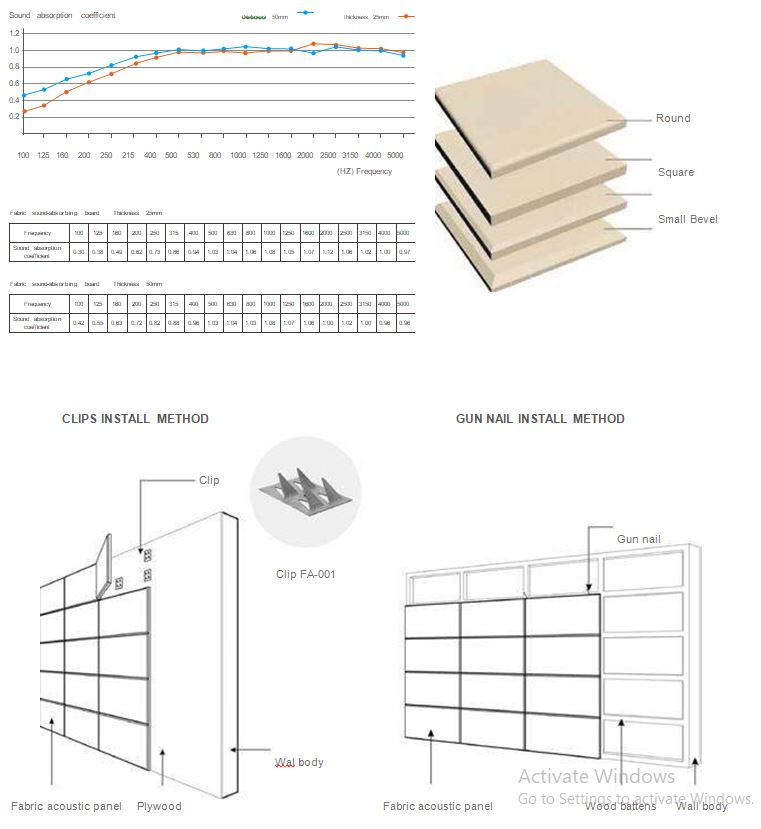

| Construction | Consistent with the fabric acoustic panel, it can be pasted, buckled and nailed |
SilentFelt FULL-FREQUENCY ABSORPTION FABRIC ACOUSTIC PANEL

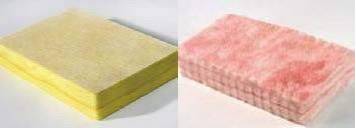

ENVIRONMENT PROTECTION FABRIC ACOUSTIC PANEL
Specifications
| Name | Silentfelt Environment protection fabric acoustic panel |
| Base Material | Owens corning cotton, glass cotton, red glass cotton |
| Frame | Resin frame, aluminum frame, soft frame |
| Finish | Fabric series, leather series, fi ber glass fabric series |
| Fire protection | Class A (base material) |
| Environmental protection | No formaldehyde release |
| Construction | Consistent with the fabric acoustic panel, it can be pasted, buckled and nailed. |
| Largest size | W 1400mm * L 6000mm |

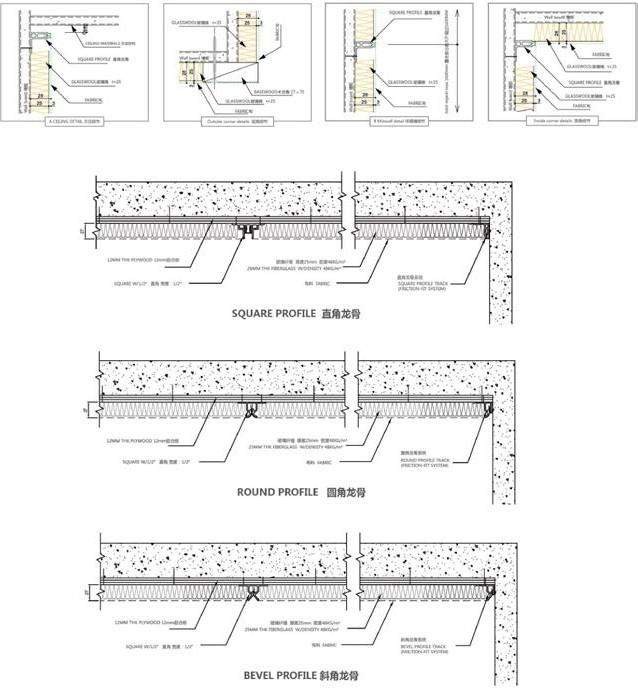

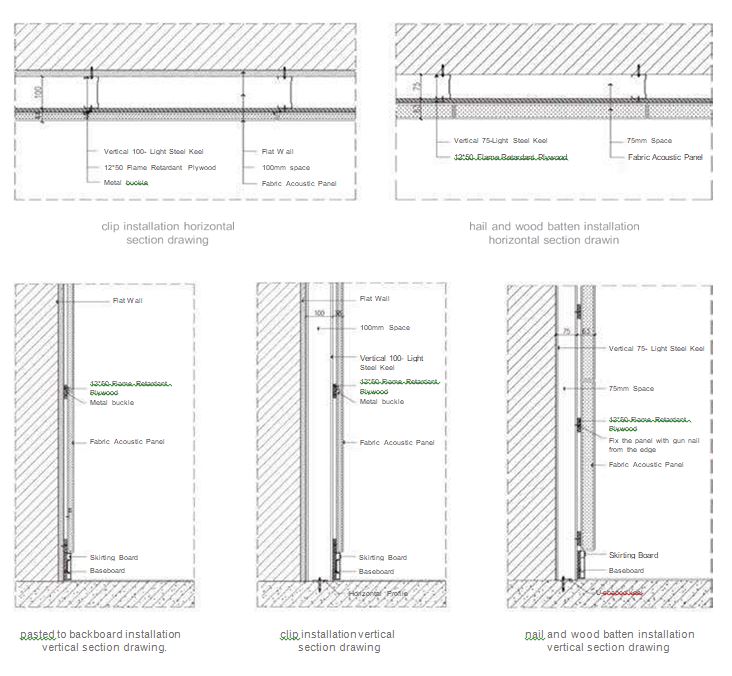

SilentFelt FABRIC ACOUSTIC PANEL INSTALLATION NODE DRAWING
SilentFelt FABRIC ACOUSTIC PANEL FA SERIES
PRODUCT INTRODUCTION
SilentFelt Fabric acoustic panel is made of resin frame aluminum frame and wood frame, filled with high density non-inflammable micro perforated fiberglass acoustic board, covering fire-resistant fabric. It is eco-friendly, good decoration fire-resistant no-dust and easy to install. panel is good materials and high sound absorption performance in middle and high frequency.
FEATURES
- High performance in sound absorption in middle and high frequency,fire- resistant, no-dust, good decoration, easy to
- Various colors for optional, customized color is acceptable. fabric and frame can change as per customer s request.
APPLICATION

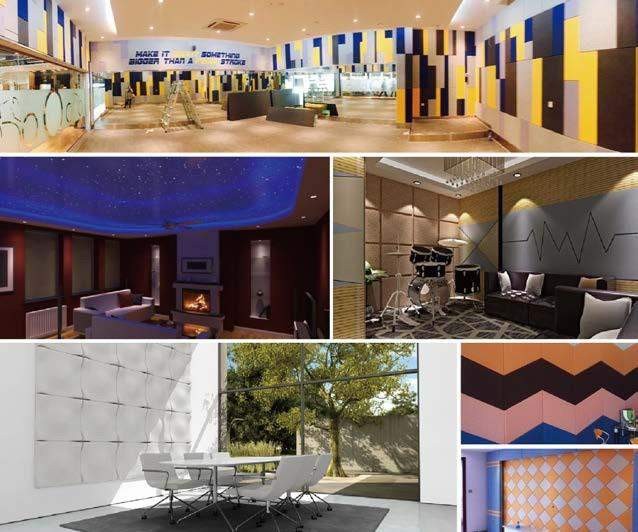

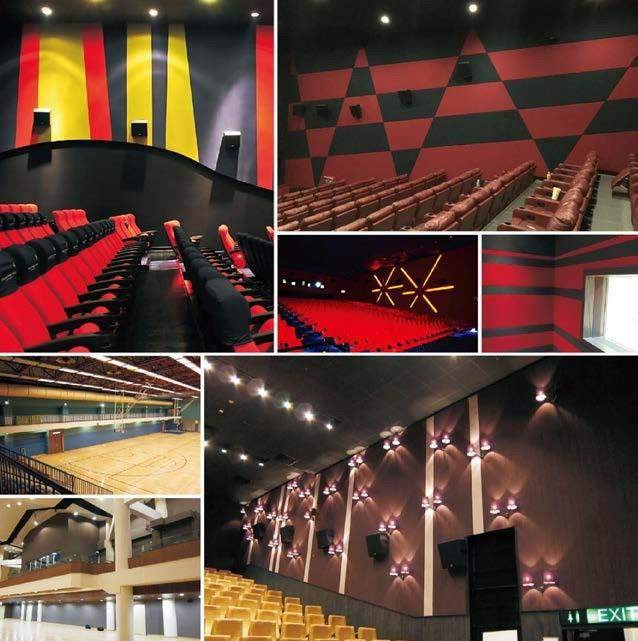

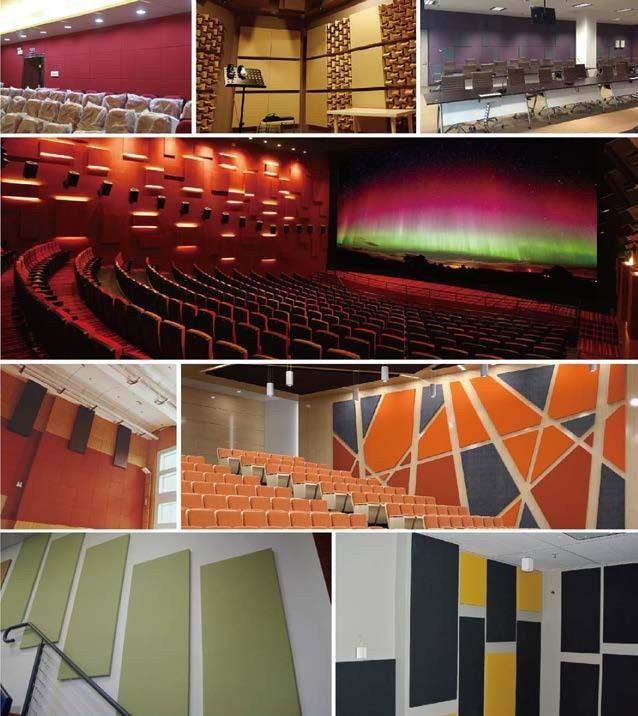

Multi-function hall, opera house, conference room, theater, auditorium, hotel television, concert hall, piano room, gymnasium, homes with strict requirements of acoustics.
Specifications
| Name | SilentFelt Fabric Acoustic Panel |
| Structure | Base Materials finish frame |
| Base materials | 96kg/m³ Micro-perforated Fiberglass Acoustic Board or Other Density Cloth / Leather |
| Border | Resin Border Aluminum Border Wood Border |
| Model | FA25 / FA50 |
| Edge | Square / Bevel Round |
| Common size | Square / Bevel Round |
| Common size | W 600/1200mm * L 600/1200/2400mm * T 25/50mm and other design |
| Fire-resistant | Fire-resistant Panels Can Reach Class A Under ASTM-E84 Standard Class 1 Under Bs476 Part 7 Standard |
FEATURES
| Excellent Sound Absorption of wall and ceiling panel. |
| Adopte a wide range of fabric thickness. |
| Easy and economical fabric replacement. |
| No limit to size or shape of panel. |
| Fabric can be removed for cleaning or cleaned on site. |
| Interlocking or Friction-Fit system can be chosen. |
| No gaps and Sagging of Fabric. |
| Flexibility in design. |
Acoustic Armor Melamine Foam
Product Introduction
SilentFlet PVC tracks is a innovation of fabric acoustic panel. lt is PVC tracks and friction -fil system used to stretch fabric cover various thicknesses of fiberglass to meet different acoustic requirement. The system greatly improves the appearance of the interior environment while providing solutions to acoustic challenges. It can be fastened to virtually any wall surface. When it is used for interior design,. It provides a neat, customized finish with distinctive lines.
Specifications
| Base materials | Track system is extrusion-based design and allows you to stretch the fabric lightly with no slippage. It uses the friction between PVC track and fabric. |
| filed with | high density fire-resistant fiberglass (density is not less than 8KG/m3. The fiberglass sound camply with BS476 PART4. |
| Fabric Finish | Refer to fabric color chard for fabric acoustic panel. |
INSTALL METHOD
| 01
Mark the install area as per layout. |
| 02
Install the PVC tracks on the wall. |
| 03
Fill in the fiberglass in the PVC tracks. |
| 04
Insert the fabric in the gap of PVC tracks. |
APPLICATION

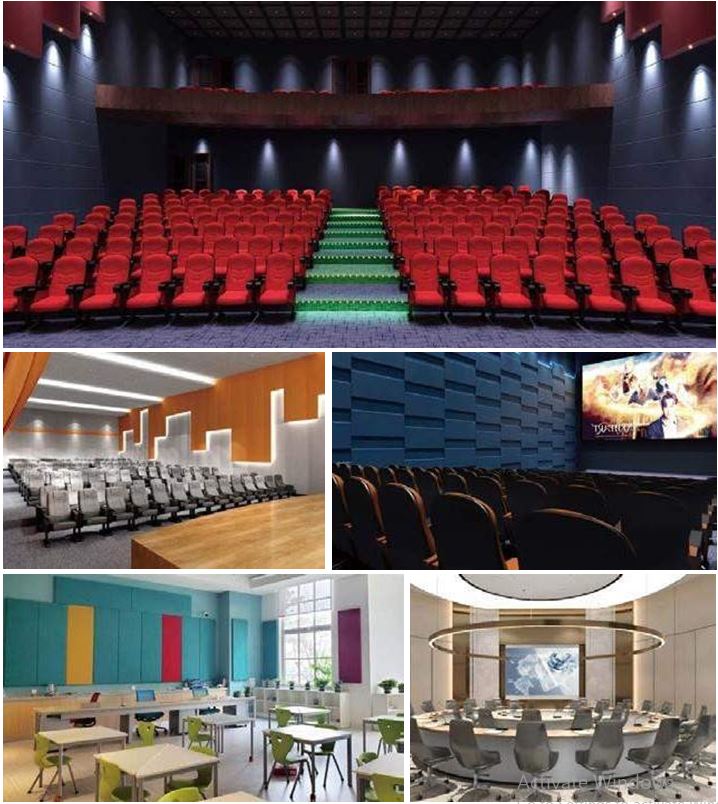

Sound studios, Sport centre, Lobbies. Cinema, Concert hall, Home Theaters, Conference Room, Classrooms, Hospitals, Churches, Gymnasiums, Auditoriums, Community Hall, Office Suites.
LEATHER SERIES
MILAN SERIES
PARIS SERIES

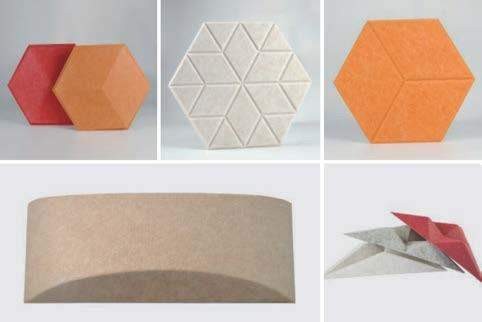

POLYESTER FIBER ACOUSTIC PANEL
Acoustic Armor Melamine Foam
Product Introduction
This series of products has modern curves, geometric shapes and smooth edges, which is the product of the designer’s combination of natural laws and modern aesthetics. The 3D design has its own cavity, which creates a more significant effect f or pr e s s i ng low-frequency than a flat design, and the concave and convex parts can fully diffuse the excess sound rays, which can achieve full-frequency sound absorption and diffusion, making the sound of the whole place clearer and fuller; Soundfelt 3D art Polyester panels are a blend of acoustics and modern decorative aesthetics.
Specifications
| Product Specifi cations | Length: 500mm Width: 500mm Thickness: 20mm/25mm/48mm/53 mm (size can be customized) |
| Advantages | light weight, strong decoration, good sound absorption performance, environmental protection high-quality products |
| Applicable places | Office Space, Clubhouse, Sports Hall, Public Area |
| Finish | May colors choice |
| Material consumption | Refer to Acoustic Design |

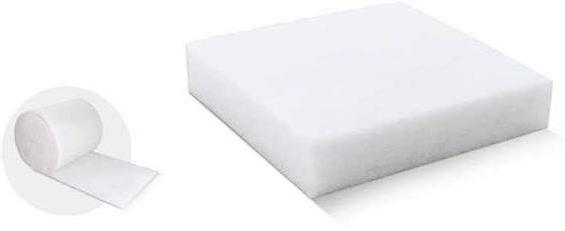

Silentfelt POLYESTER FIBER ACOUSTIC WOOL PFW SERIES
Acoustic Armor Melamine Foam
Product Introduction
Silentflet polyester fiber acoustic wool is made of 100% polyester fiber. It is environmentally safe, fire-resistant, thermal, noise reducing, h a s high soundabsorption performance, easy to cut and install. More and more designers like to use it in building acoustic and industrial noise reduction project.
Specifications
| Base materials | 100% Polyester Fiber |
| Model | Board Felt |
| Density | 24-96kg/m³ |
| Common size | Board: W 600/1200 * L 1200/2200 * T 20-100 Fet: W 1200 * L 1100/2000 * T 25-150 |
| Eco-friendly | Reach to E1 |
| Fire-resistant | Fire-resistant panels can reach class A under ASTM-E84 standard, Class 1 under BS476 part 7 standard Stuffing For |
| Application | Sound Absorption Structure |

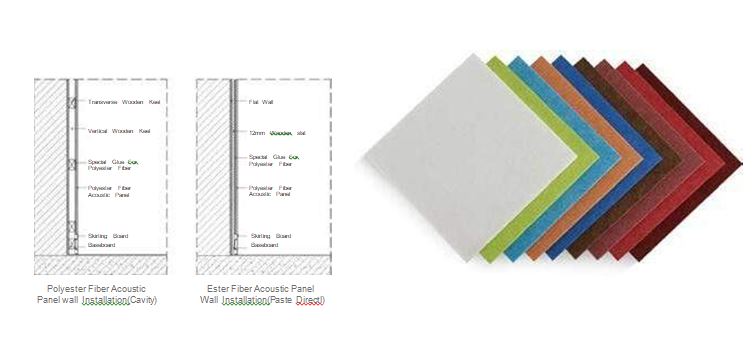

Silentfelt POLYESTER FIBER ACOUSTIC PANEL
Acoustic Armor Melamine Foam
Product Introduction
Silentfelt polyester fiber acoustic panel with high density, environmental protection, fi re proof, wide frequency sound absorption, strong decoration, simple construction, easy cutting, no dust pollution and other properties, many color and decorative shape choices, can well meet customers acoustic and decoration requirements. The highest fi re resistance grade B1, the highest environmental 1protection grade E1.
Specifications
| Installation accessories | Light steel keel, 9mm plywood batten, gun nails, nail free glue |
| Material consumption | Refer to acoustic design |
| Substrate | 100% polyester fiber |
| Corner processing | Chamfering |
| Density | 160-229kg/m³ |
| Color | A variety of colors for customers to choose. |
| Product specification | Thickness 9mm/12mm/15mm or 18mm/24mm/50mm(customized) Size W 1220 * L 2420/2440mm |
COLOUR CHART
COMPOUND DAMPING SOUND INSULATION BOARD IB01/IB02
Composite damping and sound insulation board is made of inorganic materials with different densities on both sides (6mm and 9mm white inorganic board in surface or 6mm black inorganic in surface and 9mm i n white.), is sandwiched with high polymer damping adhesive in the core. High pressure composite molding forms the constrained damping structure, change the resonant frequency of the original materials and greatly increase the airborne sound insulation index and structure sound insulation index.
APPLICATION
Residence, hotel, leisure club, KTV and other places which need increase wall and ceiling sound reduction index.
COMPOSITE CORK DAMPING AND SOUND INSULATION BOARD IB03
Soft wood damping and sound insulation board is made of inorganic materials with different densities and different thickness, the soft wood is arranged in the core layer, and two layers of high polymer damping materials are molded compositely under high pressure without adhesive. High density boards on the front and rear surfaces have good medium- high frequency sound insulation effect. The double-layer constrained damping structure generates high-efficiency, low frequency and ultralow frequency transmission shearing stress.
APPLICATION
Bar, night club, high noise machine rooms, active sound insulation structures and sound insulation doors manufacture.
COMPOSITE VIBRATION ABSORBER SOUND INSULATION BOARD IB04
Composite vibration damping adhesive and sound insulation board: The central damping layer is made of high -elasticity ant i aging and flame resistant YMS/ EVA materials, the front and rear surface boards are made of inorganic materials with different densities and thickness to form the structure properties of sound insulation and vibration damping materials and effectively insulate the medium-low frequency sound transmission.
APPLICATION
KTV, night club, show bars, private theaters, HIFI listening rooms. piano rooms. recording studios and other active sound insulation structures.
COMPOSITE CORK DAMPING AND SOUND INSULATION BOARD IB03
Timber damping and sound insulation board adopt 9mm fire-resistant plywood and in surface and 6mm high density inorganic board on the bottom surface, the high polymer damping adhesive is sandwiched, and the three materials with different properties are molded compositely under high pressure.
Features: It is green, eco-friendly, easy to cut and install. The timber layer surface provides a rich later forming condition.
Specifications
| Model | Surface density | Weight of single pocs | Common Size | Area of single pcs |
| IB01 | 18.5 | 55 | 1220*2440*16 | 2.97 |
| IB02 | 19.8 | 59 | 1220*2440*16 | 2.97 |
| IB03 | 22 | 64 | 1220*2440*25 | 2.97 |
| IB04 | 23.3 | 68 | 1220*2440*25 | 2.97 |
| IB05 | 14.4 | 43 | 1220*2440*18 | 2.97 |
Acousticarmor Slatted Wooden Acoustic Panel
Accessories
1. Commercial premises and offices
2. Schools and educational buildings
3. Call centers and reception areas
4. Theatres
5. Auditoriums
6. Conference Centers
7. Sports Centers
8. Recording Studios
9. Cinemas
10. High traffic public areas
Specifications
Name AcousticArmor Slatted Wooden acoustic panel
Shape Square or customized
Finished Melamine / veneer / HPL
Thickness 21mm / 24mm / 27mm
Size(W*L*H) 608*1210mm
Patterns 9mm polyester + MDF strips
Function E1 standard
Silentfelt Suspended Sound Absorber SA Series
Product Introduction
These places; such as Gymnasium, opera hall and dance hall will use suspended sound absorber for architectural acoustic design. SilentFelt Suspended
Sound absorber is a high sound absorbing acoustic material which can be hanged from the ceiling. It is always in a vertical hanging or horizontal
hanging formation. SilentFelt sound absorber has double the acoustic performance of competitors at 30% – 45%
of the top area covered It is also used in industrial factories to reduce noise
Specifications
Name Silentfelt Cuboid suspended sound absorber
Structure Base Materials, Finish, Frame
Base material 80kg/m³ and 96kg/m³ Fiberglass Acoustic Board
Finish Fire-resistant Fabric / Leather / Fiberglass Cloth
Border Aluminum Alloy / Resin / Wood
Model SA01 50 / SA01 100 / SA01 150
Weight 5.5kg/m³ / 11.5kg/m³ / 13.5kg/m³
Common Size W 600/1200mm * L 600/1200/2400mm * T 50/100/150mm and other customized
Fire-resistant Fire-resistant panels can reach class A under ASTM-E84 standard, Class 1under BS476 part 7 standards.
Eco-friendly Environmental protection standard. The product contains little formaldehyde with natural wood fragrant. Non-formaldehyde
is also available
Application Stadium, multi-functional hall and some big space.
Acoustic Armor Sound Absorbing Cotton Bag
Specifications
Installation position Installation position Installed behind the sound absorbing
Color White or Black
Structure Owens Corning wool, hydrophobic & formaldehyde free white glass wool wrapped with 100g–200g/m2 white glass fiber cloth.
Fire resistance Class A
Size Length: 1200mm/2400mm width: 600mm/1200mm Thickness: 25mm/50mm/80mm/100mm (Tolerance: length±2mm,
width±1mm, thickness±1mm)
Applicable place It is suitable for strengthening the sound absorption performance in the back cavity of various sound absorption materials,
such as grooved aluminum acoustic panel, grooved acoustic panel, perforated acoustic panel, perforated aluminum panel
and crystal-sand acoustic panel etc.
Acoustic Armor Melamine Foam
Product Introduction
Melamine foam has high porosity, this allows it to consume and absorbed the soundwave deep inside the foam which will then convert the sound energy into kinetic and heat energy through internal friction. It is used for indoor sound absorption and noise reduction, no dust or harmful gas release during construction. It is used inside the resonant structure to improve the full frequencies and sound absorption.
Specifications
Specifications Length: 600mm/1200mm/2400mm width: 600mm/1200mm thickness: 25-100mm
(tolerance: length±2mm, width±1mm, thickness±1mm)
Density 8-10kg/m³
Applicable places Gymnasium, theatre, auditorium, church, recording room, studio, multi-function hall, home theater, etc.
Installation accessories Light steel keel, 12mmplywood batten, special clip piece
Advantage
Excellent sound absorption performance: 25mm melamine foam is similar to 50mm 32kg/M3 glass wool on the sound absorption performance.
It can be processed into any shape of sound absorber, and its work ability and construction environment are
much better than traditional foam products.
It is made of high temperature foaming, with unique chemical stability. Its sanitation can meet the requirements of food hygiene level. It has resistance to chemical reactions, can also be used for household cleaning.
It’s green product, environmental protection, non-toxic and formaldehyde free.
Compared with other sound absorbing cotton boards: it has better sound absorption performance, no dust pollution and no harm to human body.
