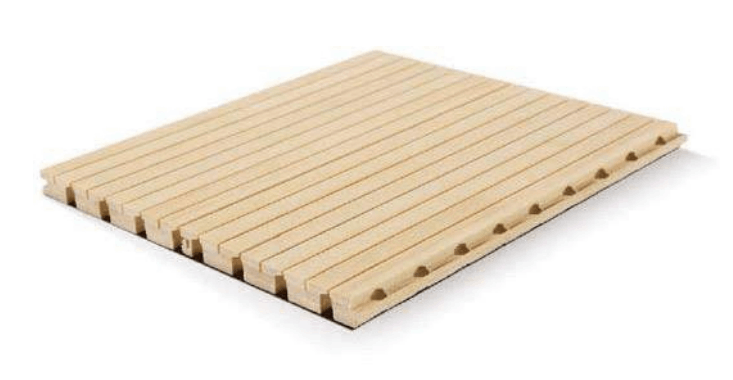

Acousticarmor Grooved Wooden Acoustic Panel GA Series


Product Introduction
The panel has excellent noise reduction and sound absorption performance, especially for
medium and low frequencies. Meanwhile, the natural wood grain and diverse finish choice provide
good visual effects for everyone
Features
Eco-friendly: All materials meet the national and international environmental protection standards. The
product contains a little formaldehyde with natural wood fragrance. Non-formaldehyde is also available.
Fire-resistant: Fire-resistant panels can reach class A under ASTM-E84 standard, Class 1 under BS476
part 7 standards.
Easy installation: Standard module product, could be installed easily with keel and fastener.
Applications

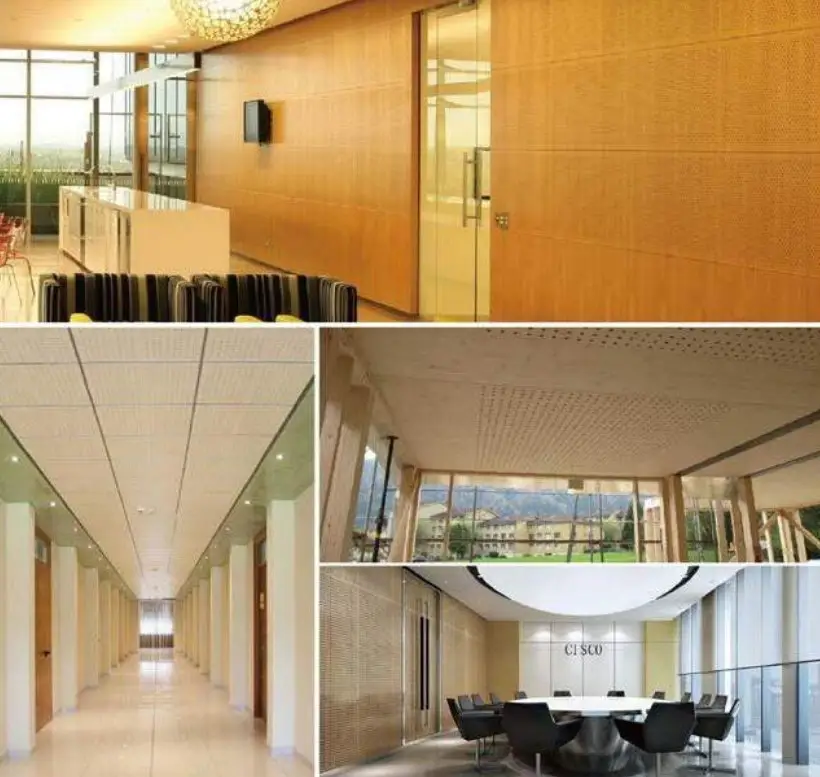

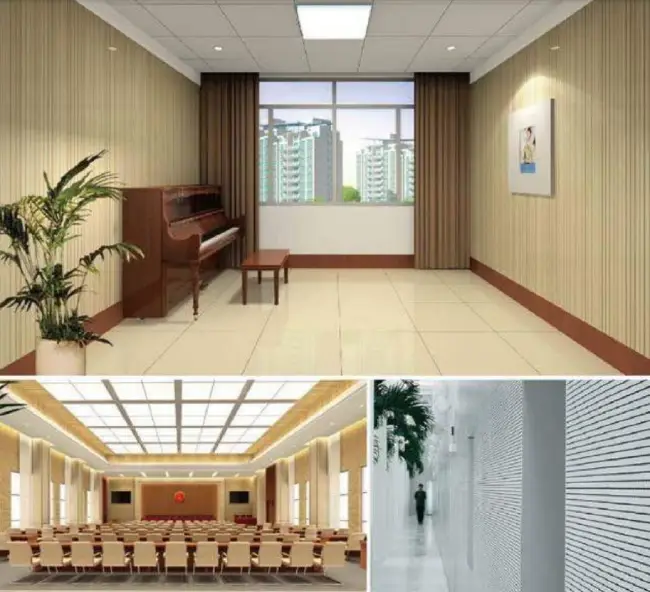

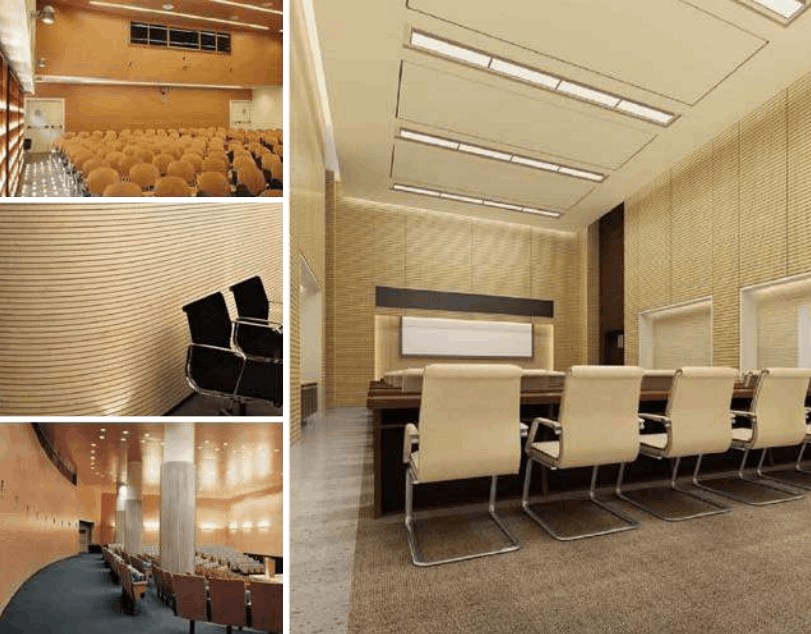

Multifunctional Hall, Conference Room, Opera Hall, cinema, Auditorium. Hotel. Tv Station, Music Hall,
Piano Room. Gymnasium, or ny place which has high acoustic requirements.
Specifications
Name | AcousticArmor Grooved Wooden Acoustic Panel GA SERIES |
Structure | Base Materials / Finish / Back |
Base Material | Standard / Eco-friendly / Fire-resistant / Moisture-proof / A Grade Non-Inflammable/ Composite Fire-resistant / Non-formaldehyde Solid Wood / Other customized |
Finish | Veneer/Melamine/Hpl Fire-proof/Pu Painting |
Back | Black Fire-resistant Sound Absorbing Fleece |
Model | GA59-5 / 40-3 / 28-4 / 18-3 / 14-2 / 13-3 / 9-2 / 5-3 / Other customized models |
Common Size | W 133mm * L 2440mm * T 15/18/12mm |

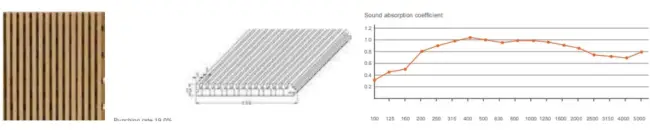

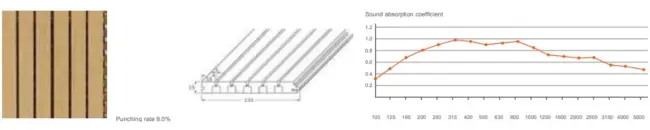

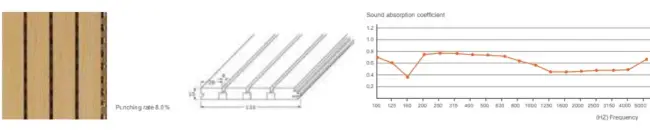

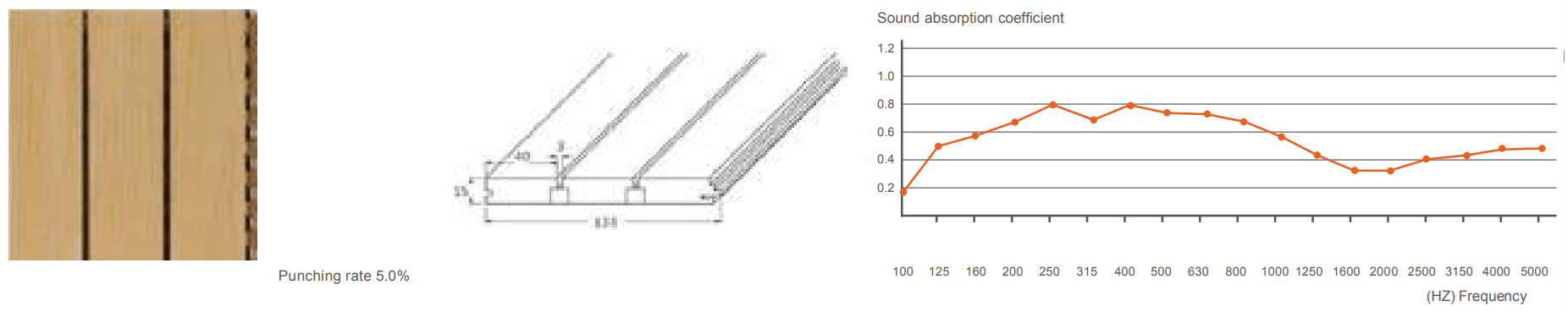

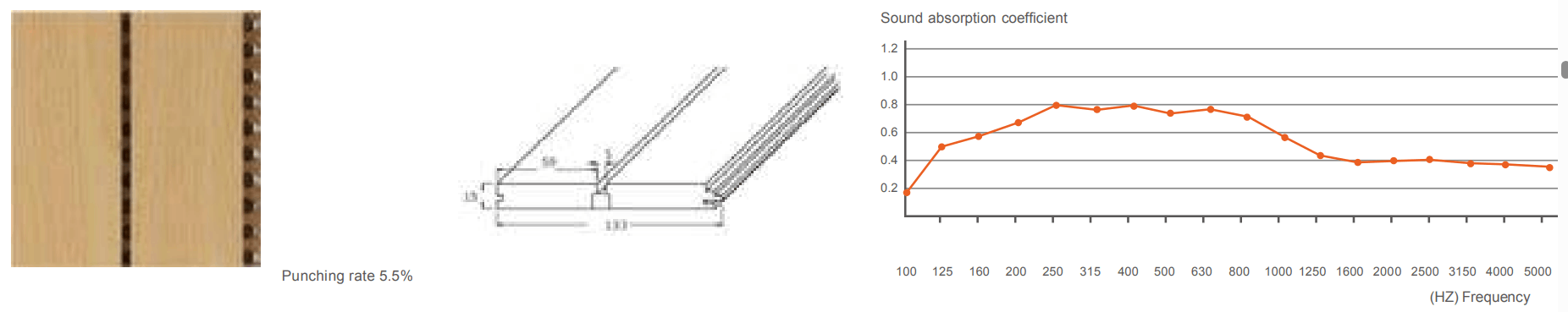

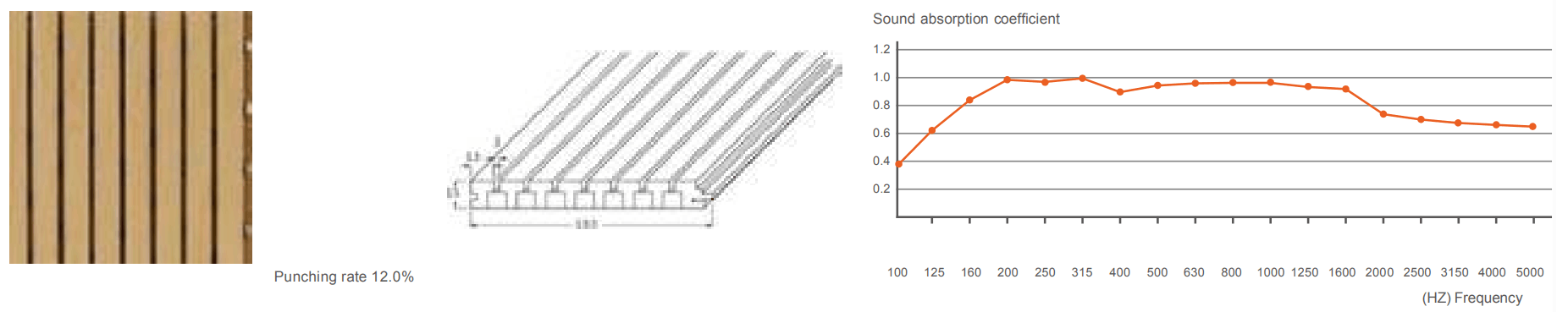

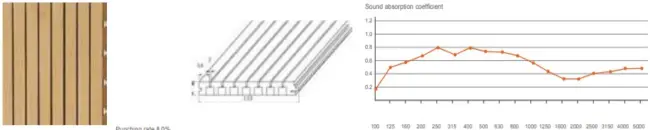

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.15 | 0.42 | 0.50 | 0.60 | 0.75 | 0.70 | 0.78 | 0.66 | 0.70 | 0.62 | 0.50 | 0.38 | 0.35 | 0.35 | 0.32 | 0.32 | 0.30 | 0.30 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.20 | 0.45 | 0.60 | 0.70 | 0.80 | 0.75 | 0.82 | 0.76 | 0.75 | 0.62 | 0.52 | 0.40 | 0.37 | 0.35 | 0.40 | 0.35 | 0.44 | 0.45 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.69 | 0.60 | 0.40 | 0.98 | 0.96 | 0.86 | 0.92 | 0.86 | 0.87 | 0.72 | 0.62 | 0.48 | 0.47 | 0.45 | 0.54 | 0.70 | 0.44 | 0.45 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.38 | 0.55 | 0.70 | 0.80 | 0.90 | 0.98 | 0.98 | 0.90 | 0.90 | 0.88 | 0.82 | 0.78 | 0.70 | 0.68 | 0.62 | 0.55 | 0.53 | 0.52 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.39 | 0.64 | 0.82 | 0.99 | 0.99 | 1.00 | 0.90 | 0.92 | 0.92 | 0.98 | 0.98 | 0.94 | 0.86 | 0.73 | 0.66 | 0.66 | 0.65 | 0.62 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.20 | 0.45 | 0.60 | 0.70 | 0.80 | 0.75 | 0.82 | 0.76 | 0.75 | 0.82 | 0.52 | 0.40 | 0.37 | 0.35 | 0.40 | 0.40 | 0.44 | 0.45 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.40 | 0.50 | 0.53 | 0.70 | 0.90 | 0.90 | 0.87 | 0.87 | 0.80 | 0.80 | 0.71 | 0.70 | 0.58 | 0.57 | 0.56 | 0.48 | 0.48 | 0.48 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.32 | 0.38 | 0.48 | 0.80 | 0.88 | 0.95 | 0.95 | 1.08 | 1.00 | 0.95 | 1.00 | 1.00 | 0.95 | 0.93 | 0.80 | 0.79 | 0.75 | 0.80 |
Wall Instalation Method

Preparation Work Before Install And Requirement In Install Place.
01
24 hours before installation, the environment should match the requirement in temperature and humidity in. The lowest temperature is 15 degree and humidity range within 40%-60%.
02
Open the carton at least 48 hours before installation
03
Install the wood keel or steel keel as per design drawing and construction draw. The configuration for the keel should be the same as the wood acoustic panel. The recommended distance is 300-600mm.
04
Fill in the fiberglass wool in the gap of keel as per design.

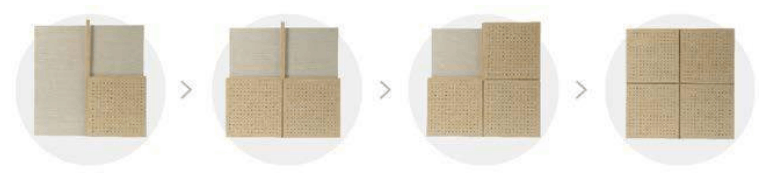

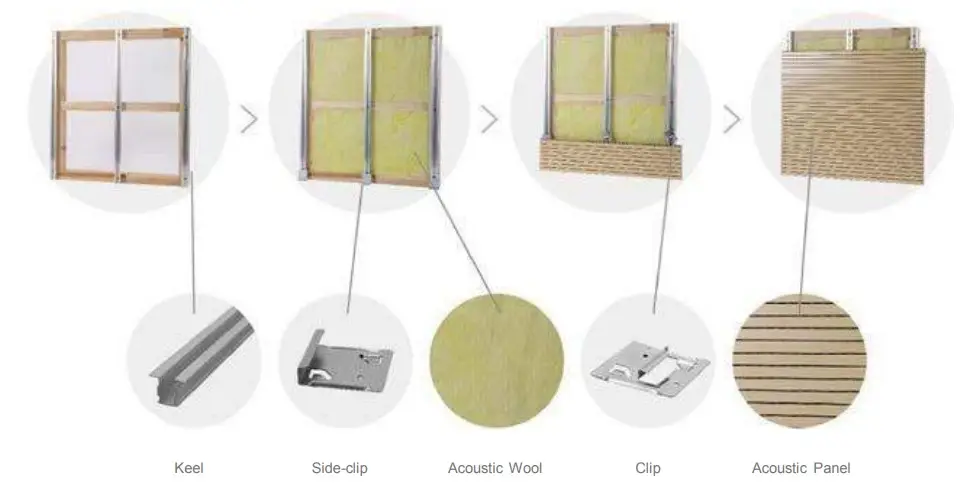

Steel Keel And Clips Method
- Fix keel 001 on the wooden battens by gun nail and screw.
- Clip 002,003 insert into keel 001, pls make sure the wood acoustic panel be fixed
- install the panels from left to right and from bottom to top.
- To adjust the panels, pls adjust the clips 002, 003

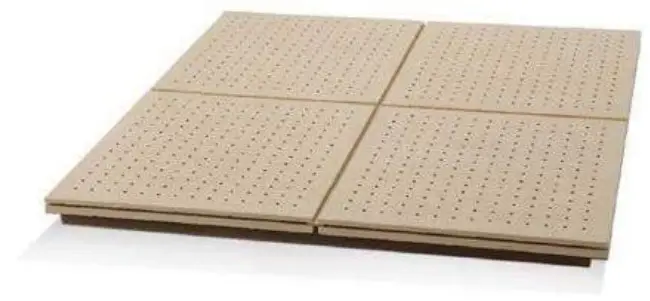

Acousticarmor Perforated Acoustic Panel PA Series
Product Introduction
The structure of hole perforation in front and back is based on scientific calculation and acoustic principle. Wooden perforated acoustic panel has high sound absorption performance in low and middle frequency. It has various finish color and materials choice to meet customers diversified request for acoustic and decoration and provide safety promisefor environment protection and fire-resistant
Specifications
Name | AcousticArmor Perforated Acoustic Pane |
Basic Material | Standard / Eco-friendly / Fire-resistant / Moisture-proof / A Grade Non-inflammable / composite Fire-resistant / Nonformaldehyde Solid Wood / Other Customization |
Finished | Veneer / Melamine / Hpl Fire-proof / Pu Painting |
Structure | Base Materials / Finish / Back |
Back | Black Fire-resistant Sound Absorbing Fleece / Soundex Sound Absorbing Fleece |
Model | PAE 16/6/15, E 16/8/15, V 32/6/15, V 16/6/15, E 16/3-10/15, V 32/3-10/15, E 8/1-12/15, E 5/1-12/15, Another customized model |
Common size | W 600mm/1200mm * L 600/1200/2400mm * T 15/18/12mm |
Eco-friendly | All materials meet the national and international environmental protection standard. The product contains little formaldehyde with natural wood fragrant.Non-formaldehyde is also available |
Fire-resistant | Fire-resistant panels can reach class A under ASTM-E84 standard, Class1 under BS476 part 7 standards. |
Application
Multifunctional hall, conference room, opera hall, cinema, auditorium, hotel, TV station, Music hall, piano room, gymnasium, villa, or any place which has high acoustic request.

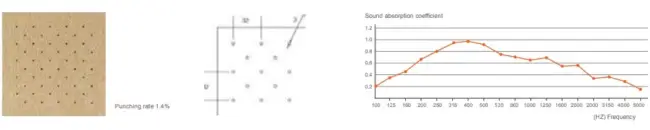

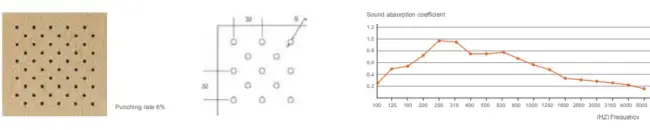

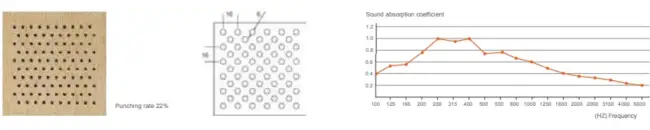

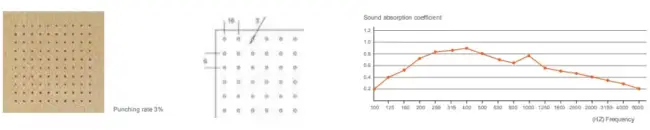

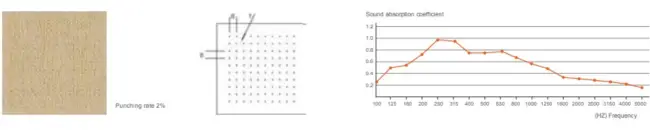

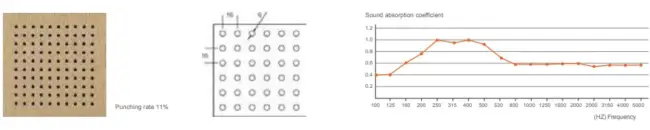

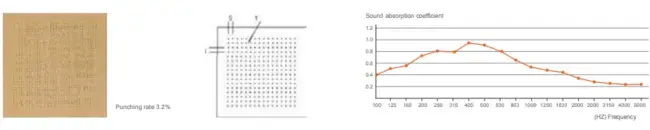

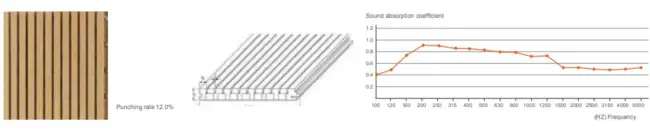

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.40 | 0.40 | 0.60 | 0.82 | 0.79 | 1.00 | 0.98 | 1.oo | 0.90 | 0.65 | 0.58 | 0.60 | 0.60 | 0.60 | 0.58 | 0.59 | 0.59 | 0.59 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.42 | 0.42 | 0.65 | 0.85 | 0.82 | 1.00 | 0.98 | 1.00 | 0.95 | 0.75 | 0.60 | 0.70 | 0.70 | 0.68 | 0.62 | 0.62 | 0.61 | 0.60 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.28 | 0.53 | 0.57 | 0.76 | 0.86 | 0.98 | 0.95 | 0.78 | 0.75 | 0.77 | 0.64 | 0.58 | 0.46 | 0.38 | 0.36 | 0.28 | 0.23 | 0.18 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.30 | 0.55 | 0.59 | 0.78 | 0.88 | 1.00 | 0.97 | 0.80 | 0.77 | 0.79 | 0.66 | 0.60 | 0.48 | 0.40 | 0.38 | 0.30 | 0.25 | 0.20 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.20 | 0.40 | 0.50 | 0.70 | 0.83 | o.97 | 0.98 | 0.90 | 0.80 | 0.70 | 0.67 | 0.78 | 0.58 | 0.48 | 0.40 | 0.38 | 0.28 | 0.20 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.18 | 0.38 | 0.48 | 0.68 | 0.81 | 0.95 | 0.96 | 0.88 | 0.75 | 0.68 | 0.65 | 0.76 | 0.56 | 0.46 | 0.38 | 0.36 | 0.26 | 0.18 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.30 | 0.40 | 0.50 | 0.80 | 0.78 | 0.85 | 0.82 | 0.72 | 0.68 | 0.61 | 0.57 | 0.40 | 0.37 | 0.27 | 0.20 | 0.18 | 0.17 | 0.16 |

Frequency | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Sound absorption coefficient | 0.30 | 0.42 | 0.55 | 0.75 | 0.82 | 0.80 | 0.92 | 0.90 | 0.80 | 0.61 | 0.52 | 0.50 | 0.45 | 0.35 | 0.30 | 0.26 | 0.24 | 0.24 |

Acousticarmor Slatted Wooden Acoustic Panel
Accessories

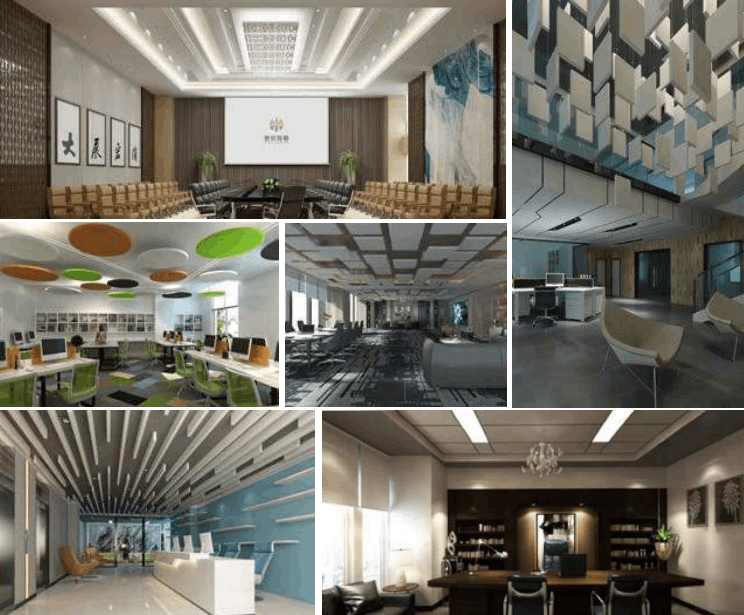

1. Commercial premises and offices
2. Schools and educational buildings
3. Call centers and reception areas
4. Theatres
5. Auditoriums
6. Conference Centers
7. Sports Centers
8. Recording Studios
9. Cinemas
10. High traffic public areas

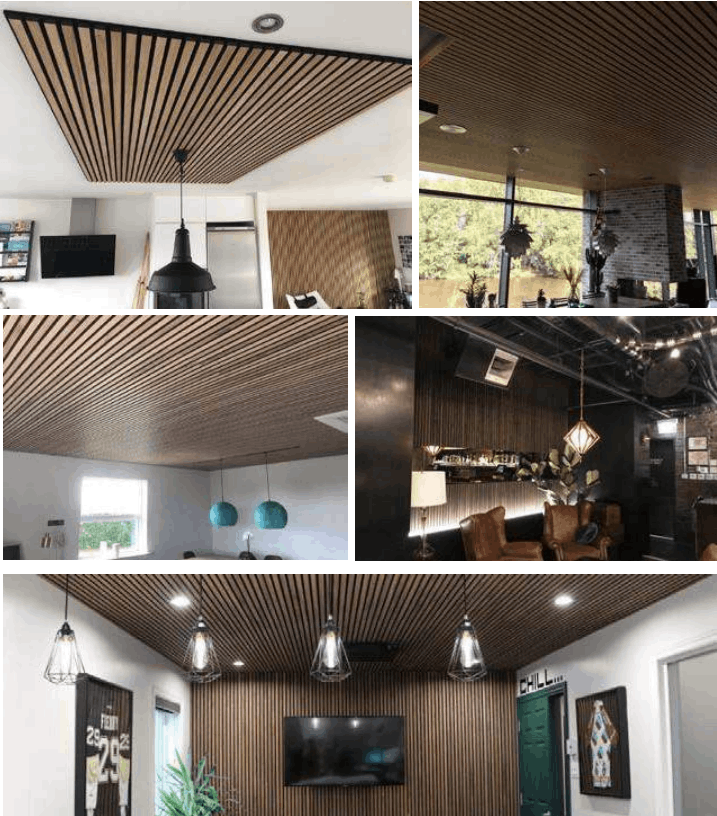

Specifications
Name | AcousticArmor Slatted Wooden acoustic panel |
Shape | Square or customized |
Finished | Melamine / veneer / HPL |
Thickness | 21mm / 24mm / 27mm |
Size(W*L*H) | 608*1210mm |
Patterns | 9mm polyester + MDF strips |
Function | E1 standard |

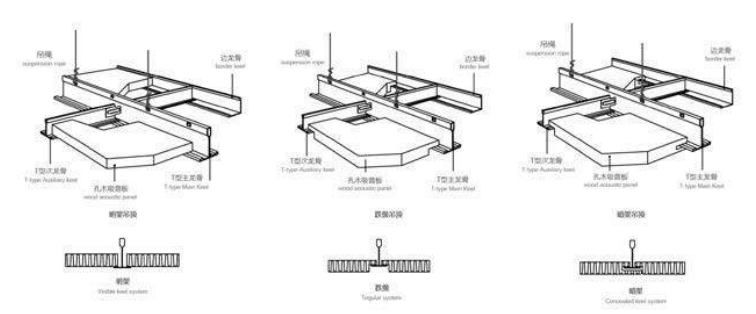

Wood Slat Install Method

Standard MDF

Base Materials
MDF Series

Standard MDF

Pine eco-friendly MDF

Red fire-resistant MDF

Black HDF

Green moisture-proof MDF
Mfo Composite Fire-resistant Series

Composite Board

A grade MGO Board

A grade Black MGO Board

A grade MGO Composite Board

Composite Board
Non-formaldehyde Series

Original Bamboo Board

Carbonized Bamboo Board

OAK Solid Wood

Pine Solid Wood

Multilayer Salid Wood

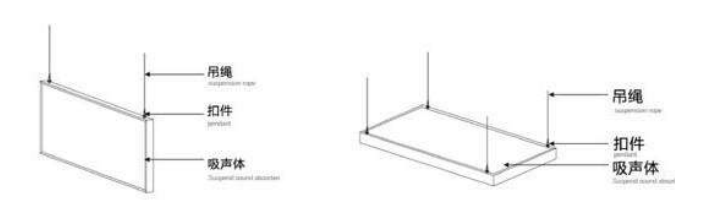

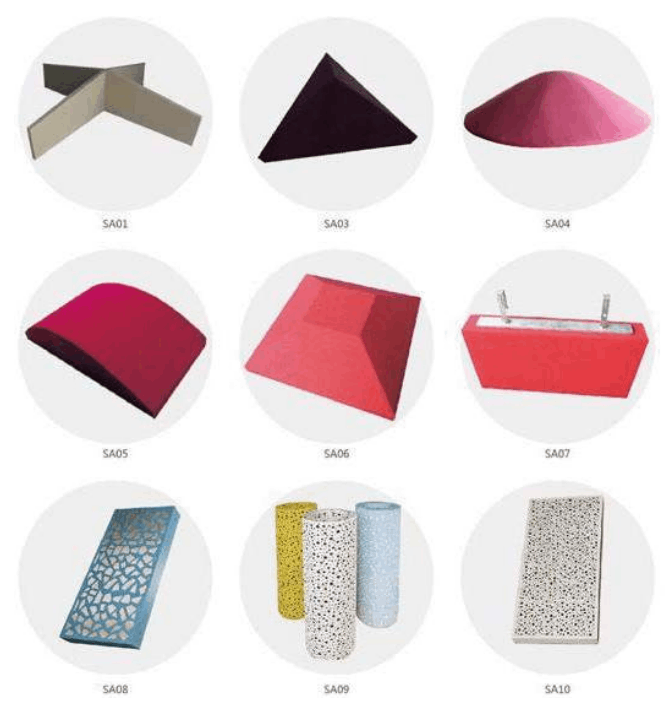

Silentfelt Suspended Sound Absorber SA Series
Product Introduction

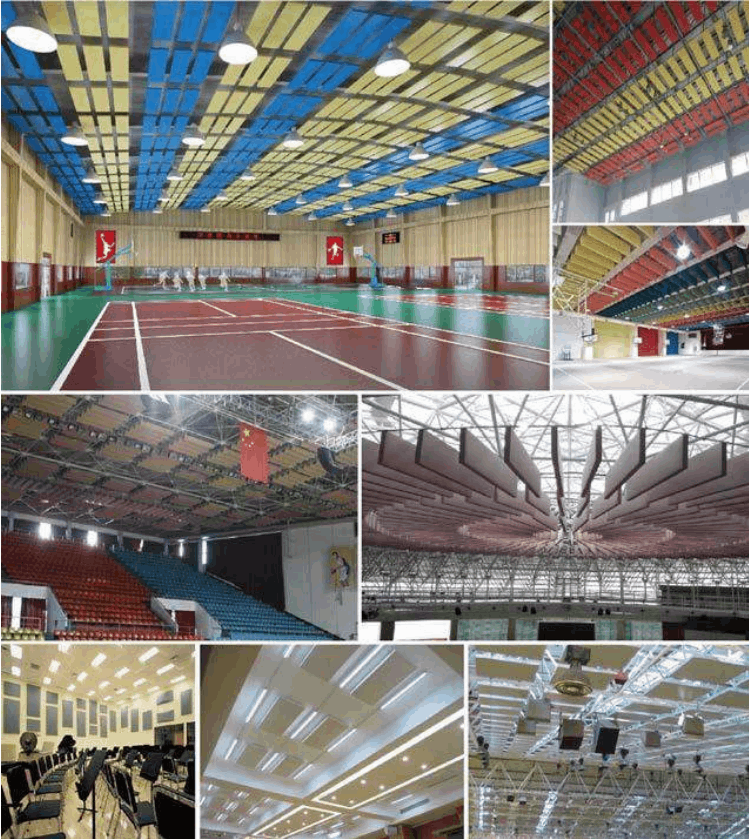

These places; such as Gymnasium, opera hall and dance hall will use suspended sound absorber for architectural acoustic design. SilentFelt Suspended
Sound absorber is a high sound absorbing acoustic material which can be hanged from the ceiling. It is always in a vertical hanging or horizontal
hanging formation. SilentFelt sound absorber has double the acoustic performance of competitors at 30% – 45%
of the top area covered It is also used in industrial factories to reduce noise
Specifications
Name | Silentfelt Cuboid suspended sound absorber |
Structure | Base Materials, Finish, Frame |
Base material | 80kg/m³ and 96kg/m³ Fiberglass Acoustic Board |
Finish | Fire-resistant Fabric / Leather / Fiberglass Cloth |
Border | Aluminum Alloy / Resin / Wood |
Model | SA01 50 / SA01 100 / SA01 150 |
Weight | 5.5kg/m³ / 11.5kg/m³ / 13.5kg/m³ |
Common Size | W 600/1200mm * L 600/1200/2400mm * T 50/100/150mm and other customized |
Fire-resistant | Fire-resistant panels can reach class A under ASTM-E84 standard, Class 1under BS476 part 7 standards. |
Eco-friendly | Environmental protection standard. The product contains little formaldehyde with natural wood fragrant. Non-formaldehyde is also available |
Application | Stadium, multi-functional hall and some big space. |



Acoustic Armor Sound Absorbing Cotton Bag
Specifications
Installation position | Installation position Installed behind the sound absorbing |
Color | White or Black |
Structure | Owens Corning wool, hydrophobic & formaldehyde free white glass wool wrapped with 100g–200g/m2 white glass fiber cloth. |
Fire resistance | Class A |
Size | Length: 1200mm/2400mm width: 600mm/1200mm Thickness: 25mm/50mm/80mm/100mm (Tolerance: length±2mm, width±1mm, thickness±1mm) |
Applicable place | It is suitable for strengthening the sound absorption performance in the back cavity of various sound absorption materials, such as grooved aluminum acoustic panel, grooved acoustic panel, perforated acoustic panel, perforated aluminum panel and crystal-sand acoustic panel etc. |

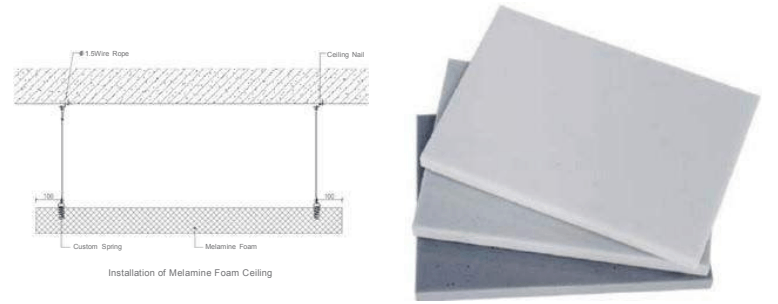

Acoustic Armor Melamine Foam
Product Introduction
Melamine foam has high porosity, this allows it to consume and absorbed the soundwave deep inside the foam which will then convert the sound energy into kinetic and heat energy through internal friction. It is used for indoor sound absorption and noise reduction, no dust or harmful gas release during construction. It is used inside the resonant structure to improve the full frequencies and sound absorption.
Specifications
Specifications | Length: 600mm/1200mm/2400mm width: 600mm/1200mm thickness: 25-100mm (tolerance: length±2mm, width±1mm, thickness±1mm) |
Density | 8-10kg/m³ |
Applicable places | Gymnasium, theatre, auditorium, church, recording room, studio, multi-function hall, home theater, etc. |
Installation accessories | Light steel keel, 12mmplywood batten, special clip piece |
Advantage
- Excellent sound absorption performance: 25mm melamine foam is similar to 50mm 32kg/M3 glass wool on the sound absorption performance.
- It can be processed into any shape of sound absorber, and its work ability and construction environment are
much better than traditional foam products. - It is made of high temperature foaming, with unique chemical stability. Its sanitation can meet the requirements of food hygiene level. It has resistance to chemical reactions, can also be used for household cleaning.
- It’s green product, environmental protection, non-toxic and formaldehyde free.
- Compared with other sound absorbing cotton boards: it has better sound absorption performance, no dust pollution and no harm to human body.
