Acoustic Ceiling Solutions

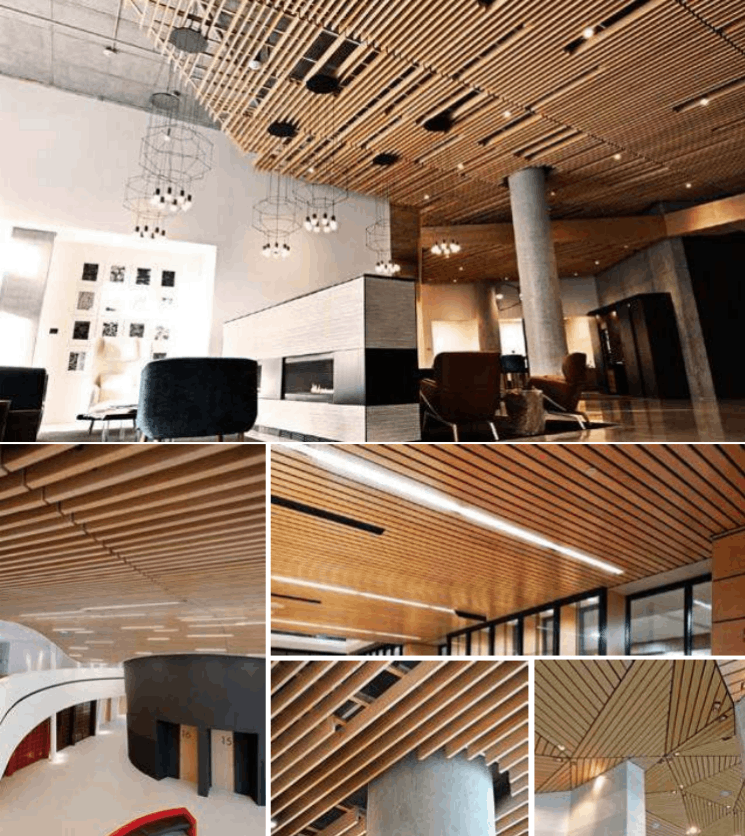

AcousticArmor CEILING WOOD GRILL
Product name:
Solid Wood liner Ceiling（America,Europe）

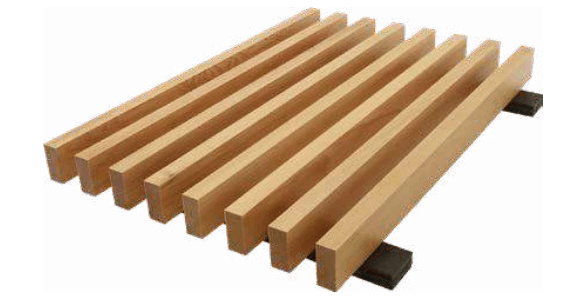

Solid Wood Grill（Europe）
Wood Slat Ceiling（Spain）
Wooden Acoustic Hanging Baffles（Columbia
Specifications
| Name | CEILING WOOD GRILLERS/BAFFLES |
| Structure | Solid wood strips combined |
| Finished | Wooden color or painting |
| Model | See following or drawing |
| Size(W*L*H) | 600*1200*35mm or customize |

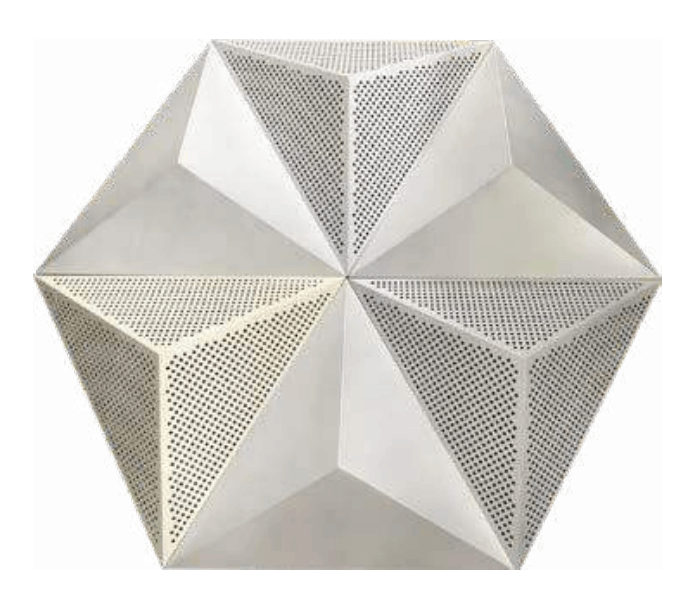

Perforated 3d Triangle Aluminum Ceiling Tile
Application
Industrial and civil buildings.
Interior decorative panel, partition panel;
Airport, bus station, museum, opera house;
Exhibition Hall, shopping center;
Conference Hall, office, bar and etc.
Specifications
| Name | Perforated 3D Triangle Aluminum Ceiling Tile |
| Shape | Triangle |
| Structure | Solid wood strips combined |
| Finished | Powder Coating, Spray Painting |
| Color | White, grey, RAL color,etc |
| Thickness | 0.6-2.0mm |
| Size(W*L*H) | 600*600*30mm or customized |
| Patterns | Round 1.5mm Stagger Perforated or customized |
| Edge | Beveled / Right Edge |
| Function | Fireproof Board Ceiling, Soundproof Ceiling, Integrated Ceiling, Heat Insulation Ceiling, Moisture-Proof Ceiling, MouldProof Ceiling, Waterproof Ceiling |
Wall Install System

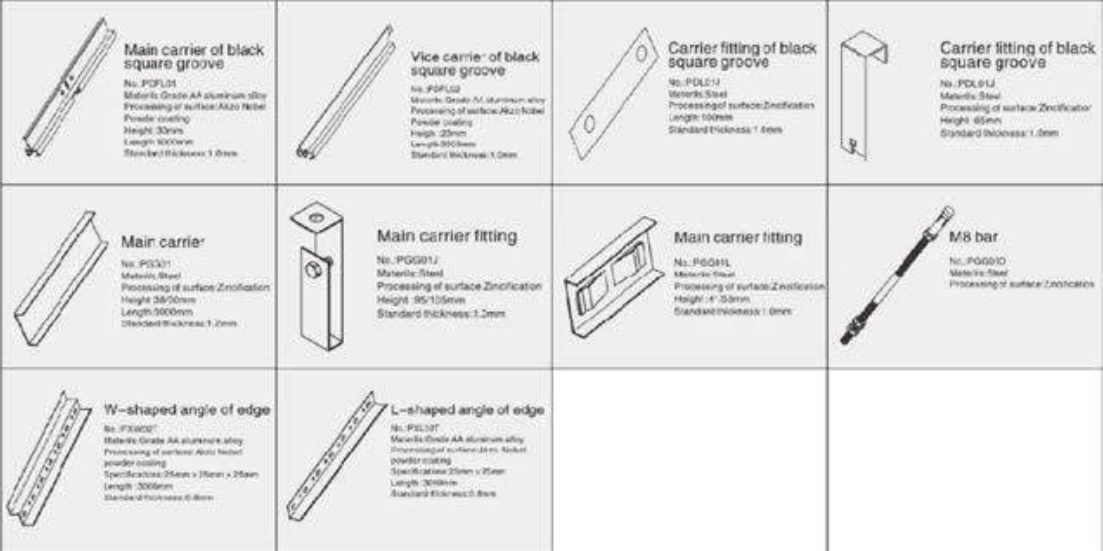

Accessories
Commercial Ceiling Tiles were derived from Germany with advanced & unique production technology. The mold is professionally designed, all panel surfaces are evened out to have distinct edges & lines.

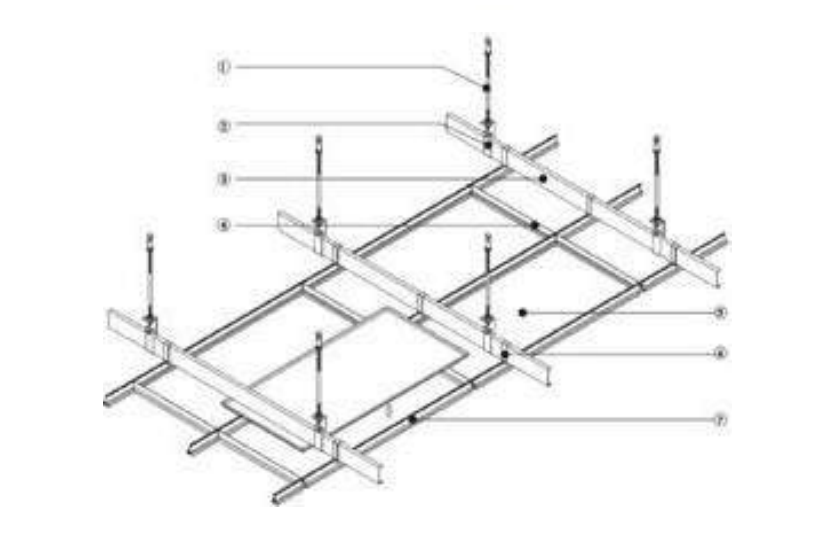

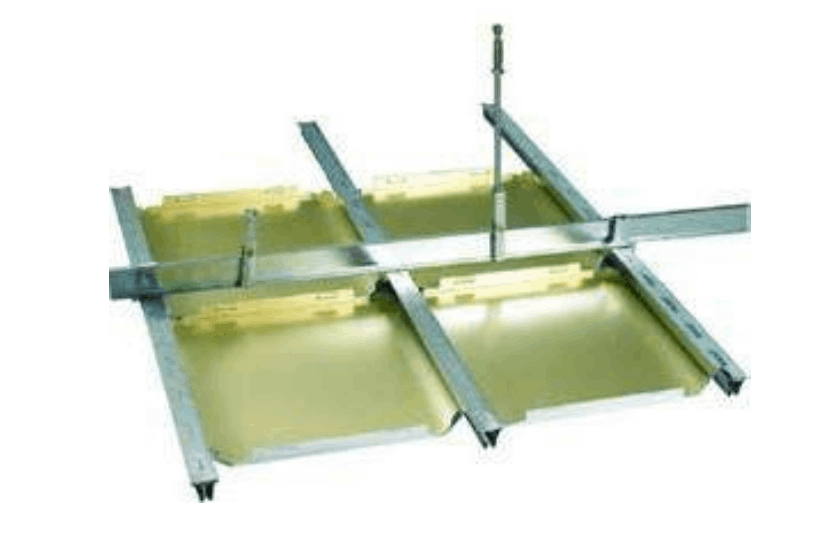

Lay-in Square Ceiling Installation Diagram
1. M8 Rod Hanger
2. Main Carrier Hanger
3. Main Carrier
4. Black Square Grooved Vice-carrier
5. Flat Lay-in Square Ceiling
6. Hanger for Black Square Grooved Carrier
7. Black Square Grooved Carrier

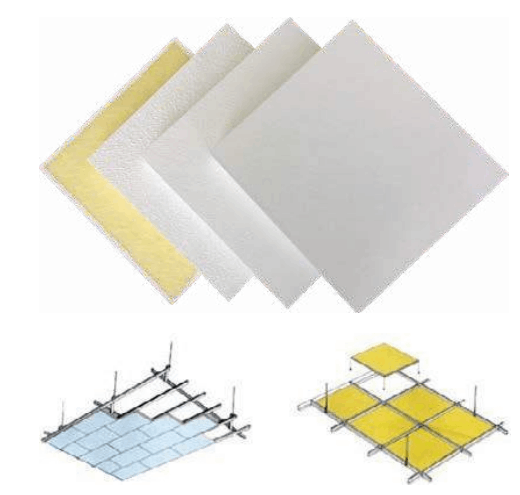

Acousticarmor Fiberglass Ceiling Panel
Specifications
| Name | AcousticArmor Fiberglass Ceiling Panel |
| Basic Material | Torrefaction compound high density fiberglass wool |
| Finished | Painted, spray, dots |
| Color | 15mm, 20mm, 25mm for flat fiberglass panel 30mm, 40mm, 50mm or customized for 3D fiberglass panel |
| Size(W*L*H) | 595*595mm 600*600mm 600*1200mm or customized |
| Patterns | Square, Tegular,Insert,3D model |
Acousticarmor Slatted Wooden Acoustic Panel
Accessories
1. Commercial premises and offices
2. Schools and educational buildings
3. Call centers and reception areas
4. Theatres
5. Auditoriums
6. Conference Centers
7. Sports Centers
8. Recording Studios
9. Cinemas
10. High traffic public areas
Specifications
| Name | AcousticArmor Slatted Wooden acoustic panel |
| Shape | Square or customized |
| Finished | Melamine / veneer / HPL |
| Thickness | 21mm / 24mm / 27mm |
| Size(W*L*H) | 608*1210mm |
| Patterns | 9mm polyester + MDF strips |
| Function | E1 standard |
Wood Slat Install Method
Standard MDF
Base Materials
MDF Series
Standard MDF
Pine eco-friendly MDF
Red fire-resistant MDF
Black HDF
Green moisture-proof MDF
Mfo Composite Fire-resistant Series
Composite Board
A grade MGO Board
A grade Black MGO Board
A grade MGO Composite Board
Composite Board
Non-formaldehyde Series
Original Bamboo Board
Carbonized Bamboo Board
OAK Solid Wood
Pine Solid Wood
Multilayer Salid Wood

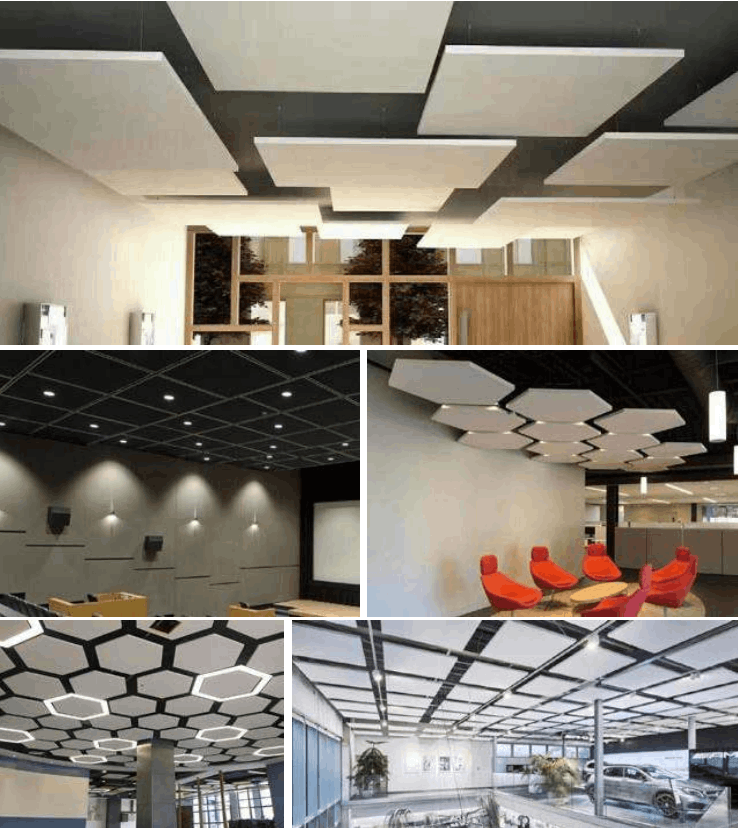

Silentfelt Suspended Sound Absorber SA Series
Product Introduction
These places; such as Gymnasium, opera hall and dance hall will use suspended sound absorber for architectural acoustic design. SilentFelt Suspended
Sound absorber is a high sound absorbing acoustic material which can be hanged from the ceiling. It is always in a vertical hanging or horizontal
hanging formation. SilentFelt sound absorber has double the acoustic performance of competitors at 30% – 45%
of the top area covered It is also used in industrial factories to reduce noise
Specifications
| Name | Silentfelt Cuboid suspended sound absorber |
| Structure | Base Materials, Finish, Frame |
| Base material | 80kg/m³ and 96kg/m³ Fiberglass Acoustic Board |
| Finish | Fire-resistant Fabric / Leather / Fiberglass Cloth |
| Border | Aluminum Alloy / Resin / Wood |
| Model | SA01 50 / SA01 100 / SA01 150 |
| Weight | 5.5kg/m³ / 11.5kg/m³ / 13.5kg/m³ |
| Common Size | W 600/1200mm * L 600/1200/2400mm * T 50/100/150mm and other customized |
| Fire-resistant | Fire-resistant panels can reach class A under ASTM-E84 standard, Class 1under BS476 part 7 standards. |
| Eco-friendly | Environmental protection standard. The product contains little formaldehyde with natural wood fragrant. Non-formaldehyde is also available |
| Application | Stadium, multi-functional hall and some big space. |
Acoustic Armor Sound Absorbing Cotton Bag
Specifications
| Installation position | Installation position Installed behind the sound absorbing |
| Color | White or Black |
| Structure | Owens Corning wool, hydrophobic & formaldehyde free white glass wool wrapped with 100g–200g/m2 white glass fiber cloth. |
| Fire resistance | Class A |
| Size | Length: 1200mm/2400mm width: 600mm/1200mm Thickness: 25mm/50mm/80mm/100mm (Tolerance: length±2mm, width±1mm, thickness±1mm) |
| Applicable place | It is suitable for strengthening the sound absorption performance in the back cavity of various sound absorption materials, such as grooved aluminum acoustic panel, grooved acoustic panel, perforated acoustic panel, perforated aluminum panel and crystal-sand acoustic panel etc. |
Acoustic Armor Melamine Foam
Product Introduction
Melamine foam has high porosity, this allows it to consume and absorbed the soundwave deep inside the foam which will then convert the sound energy into kinetic and heat energy through internal friction. It is used for indoor sound absorption and noise reduction, no dust or harmful gas release during construction. It is used inside the resonant structure to improve the full frequencies and sound absorption.
Specifications
| Specifications | Length: 600mm/1200mm/2400mm width: 600mm/1200mm thickness: 25-100mm (tolerance: length±2mm, width±1mm, thickness±1mm) |
| Density | 8-10kg/m³ |
| Applicable places | Gymnasium, theatre, auditorium, church, recording room, studio, multi-function hall, home theater, etc. |
| Installation accessories | Light steel keel, 12mmplywood batten, special clip piece |
Advantage
- Excellent sound absorption performance: 25mm melamine foam is similar to 50mm 32kg/M3 glass wool on the sound absorption performance.
- It can be processed into any shape of sound absorber, and its work ability and construction environment are
much better than traditional foam products. - It is made of high temperature foaming, with unique chemical stability. Its sanitation can meet the requirements of food hygiene level. It has resistance to chemical reactions, can also be used for household cleaning.
- It’s green product, environmental protection, non-toxic and formaldehyde free.
- Compared with other sound absorbing cotton boards: it has better sound absorption performance, no dust pollution and no harm to human body.
